24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

Name: 24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission
Brand: TSTLP
Price: 1 USD

Quality 24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission for sale

Model Number : TS-24BNC5

Certification : CE Compliance

Place of Origin : Guangdong,China

Brand Name : TSTLP

MOQ : Negotiable

Price : Negotiable if good quantity

Packaging Details : By standard export box/carton

Delivery Time : Around 7 working days upon receipt of payment

Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead

Supply Ability : 2000 sets/month

Un : 5V

Connection Ports : 24

In : 2.5kA

Up(line-shield) : ≤ 25V

Bandwidth : 300MHz

Mounting on : 19'' distribution cabinet

Contact Now

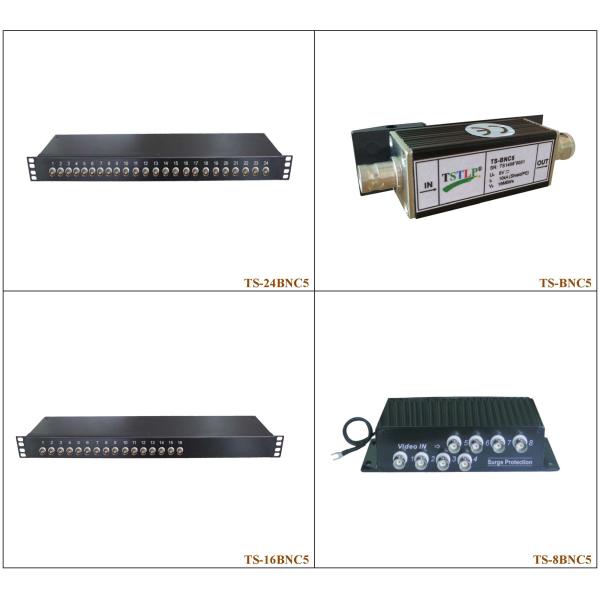

24 BNC ports cctv surge protection devices for surveillance video transmission

TSTLP 24 BNC ports cctv surge protection devices complying with IEC 61643-21 standards protects coaxial cable transmission devices, surveillance video signal transmission from interruption caused by surge current.

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

Technical Parameter S1

Model Number	TS-8BNC5
	TS-16BNC5
	TS-24BNC5
Un	5V-
Uc	8V-
UOC	5KV(line-shield)
UOC	10KA(shield-PG)
In	2.5kA(line-shield)
In	5kA(shield-PG)
Imax	5kA(line-shield)
Imax	10kA(shield-PG)
Up	≤25V(line-shield)
Up	≤15V(line-shield)
Up	≤600V(line/shield-PG)
tA	≤1ns (line- shield)
tA	≤100ns (shield-PG)
fG	300MHz
Vs	16Mbits/s

Technical Parameter S2

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

Features

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

Installation Diagram

24 BNC Ports Cctv Surge Protection Devices For Surveillance Video Transmission

PDF Catalog Download - TS-8-16-24 BNC5 SPD.pdf

PDF Catalog Download - TS-BNC5 & TS-BNC8 SPD for C...
